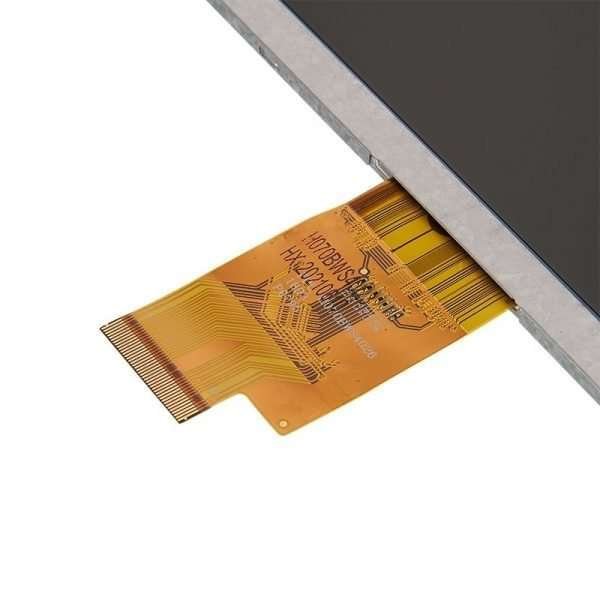

7 inch IPS TFT, LVDS, 1024×600

Model: TTX070BHT-01

Diagonal: 7.0″
Resolution: 1024×600 Pixels
Display Type: IPS
Interface: LVDS
Driver IC: TBD
Touch Option: Capacitive and Resistive
Download Resources: Specification | 2D Rendering



TTX070BHT-01 | 7 inch IPS TFT LCD | 1024×600 Pixels | LVDS |

Option of interface transfer to HDMI via the universal controller board (TBJ101HD-01) + cable
This TFT display provides a full view and high resolution, people could see the display image from any angle and in true color.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS compliant.


Diagonal (inch) 7
Resolution (pixel) 1024×600
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Optional
Module Dimensions (mm) (W x H x D) 164.9×100.0x2.8
Active Area (mm) (W x H) 154.21×85.92
Luminance (cd/m2) 350
Interface LVDS
Driver IC TBD
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading

Additional information

HDMI Controller Board


Input Interface / Signal

, ,

Touch Screen
