47.8 inch Stretched LCD, 1920×178, Outdoor Digital Display

Model: TTR478XHT-01

Diagonal: 47.8″
Resolution: 1920×178 Pixels
Display Type: IPS
Interface: LVDS
Driver IC: TBD
Touch Screen: Custom
Download Resources: Specification | 2D Rendering | Catalog



TTR478XHT-01 | 47.8-inch Bar TFT LCD | 1920×178 Pixels | LVDS |
47.8 inch resizing display with special aspect ratio 16:1.5, wide resolution 1920 x 178, high brightness 1600 nits with power efficient LED backlight. It is designed for overhead route displays and advertising in public transportation, and outdoor digital signage applications
This TFT display provide a full view, people could see the quality display image from any angle.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.



Diagonal (inch) 47.8″
Resolution (pixel) 1920×178
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Custom

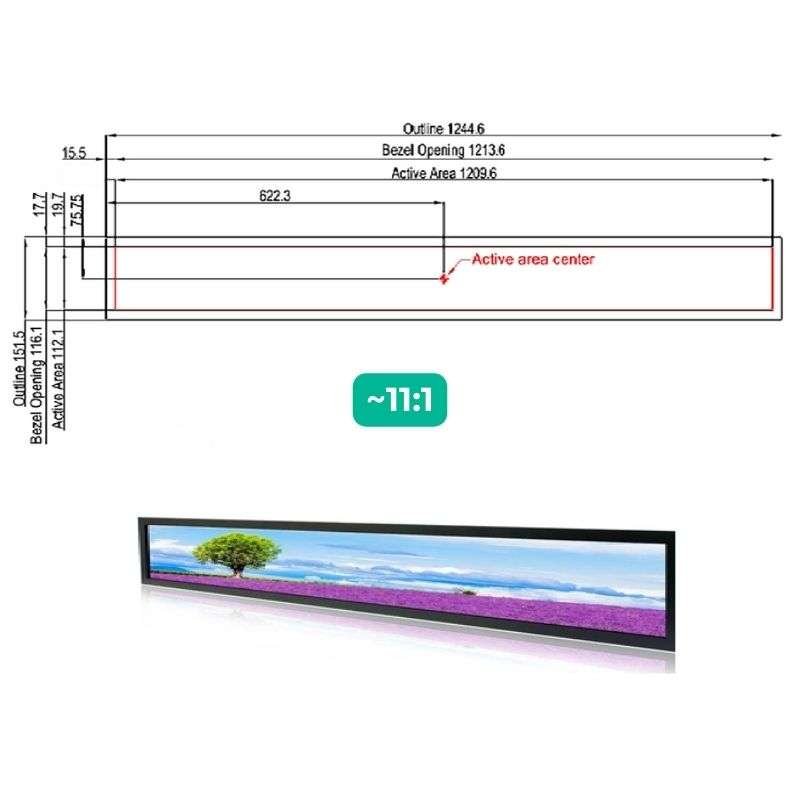

Module Dimensions (mm) (W x H x D) 1244.6×151.5×23.9
Active Area (mm) (W x H) 1209.6 × 112.1
Luminance (cd/m2) 1600
Interface LVDS
Driver IC TBD
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
