TTC040XST-03| 3.95 inch Square LCD | | 720×720 Pixels | RGB+SPI |
The 4-inch display is designed with a unique outline in Square, specially for commercial and wearable terminals.
This TFT display provides a full view, so people can see the quality display image from any angle.
This Liquid Crystal Display has a built-in NV3052CGRB controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 3.95 |
| Resolution (pixel) | 720×720 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

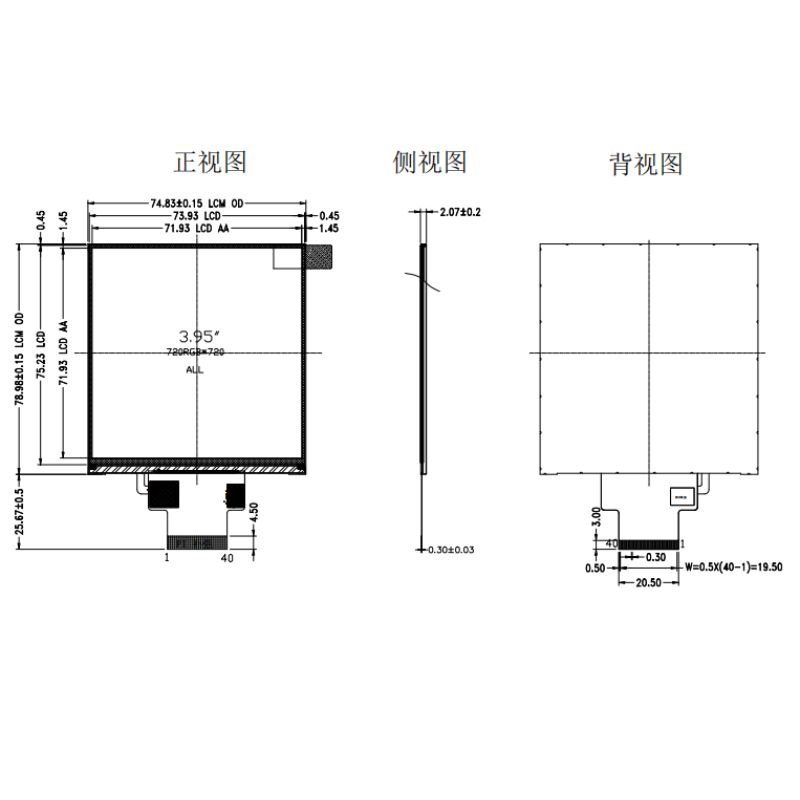

| Module Dimensions (mm) (W x H x D) | 74.83*78.98*2.07 |
| Active Area (mm) (W x H) | 71.93 *71.93 |
| Luminance (cd/m2) | 300 typ |
| Interface | RGB+SPI |
| Driver IC | NV3052CGRB |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
