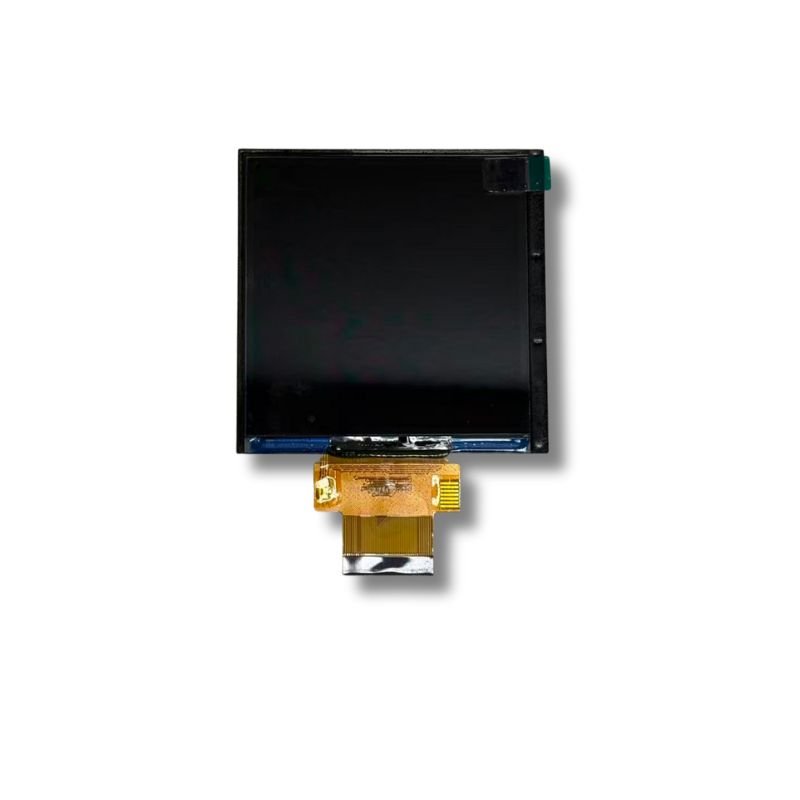

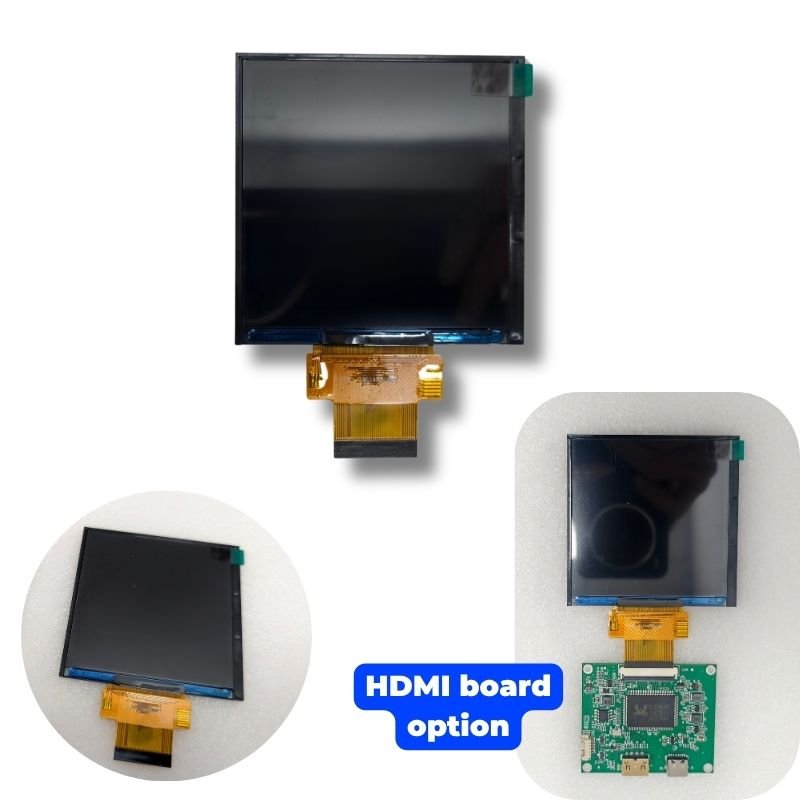

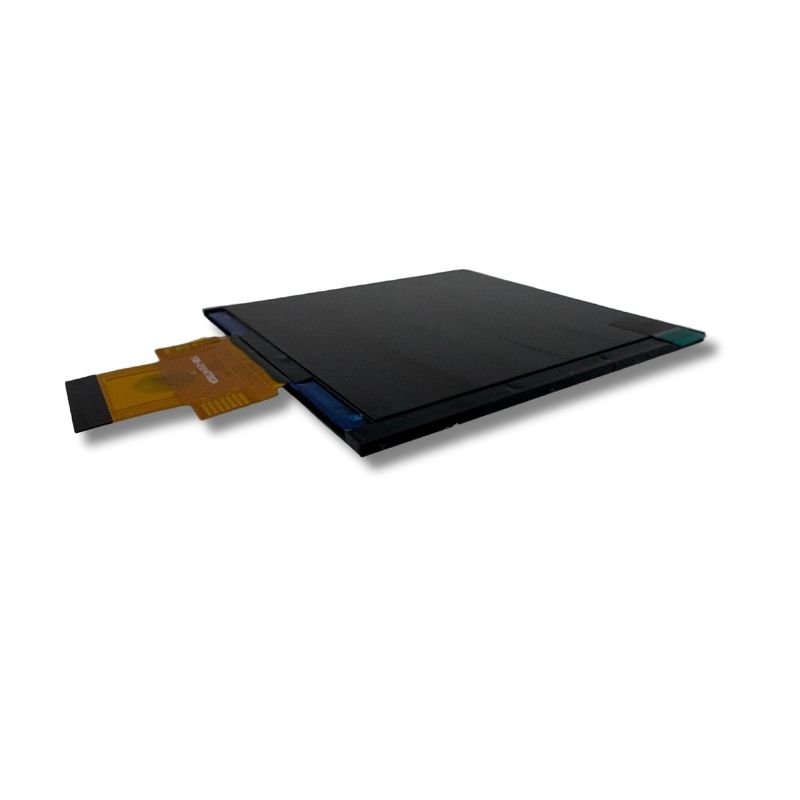

TTG034BSS-02 | 3.4′ IPS TFT LCD |Square | 480×480 Pixels | RGB+SPI|
The display is designed with a unique outline in Square, specially for commercial and wearable terminals.
This TFT display provides a full view, so people can see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7701S controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 3.4 |
| Resolution (pixel) | 480×480 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

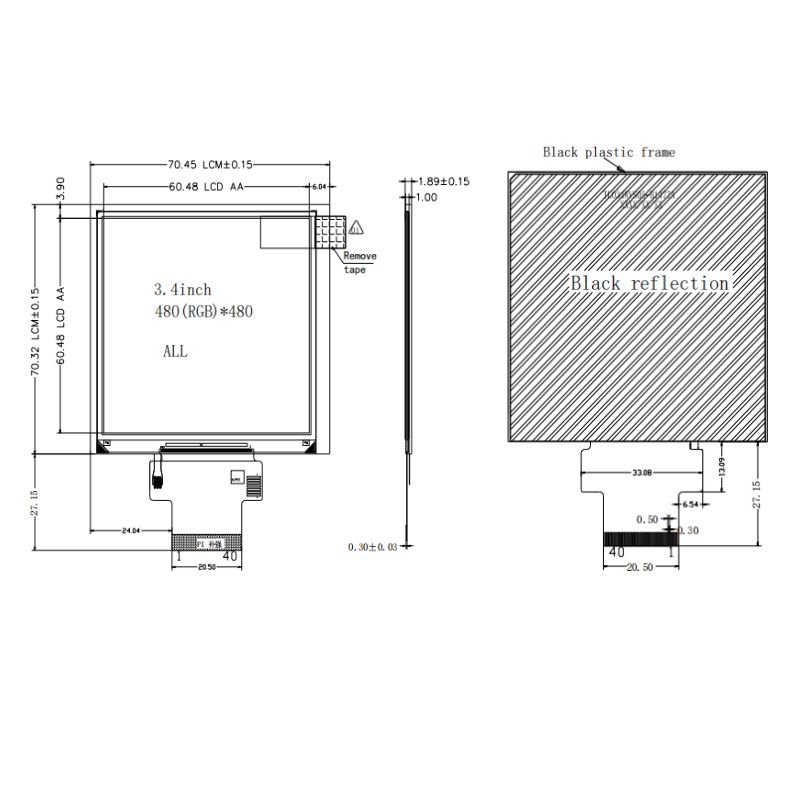

| Module Dimensions (mm) (W x H x D) | 70.45 × 70.32 ×1.89 |
| Active Area (mm) (W x H) | 60.48× 60.48 |
| Luminance (cd/m2) | 270 typ |
| Interface | RGB+SPI |
| Driver IC | ST7701S |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
