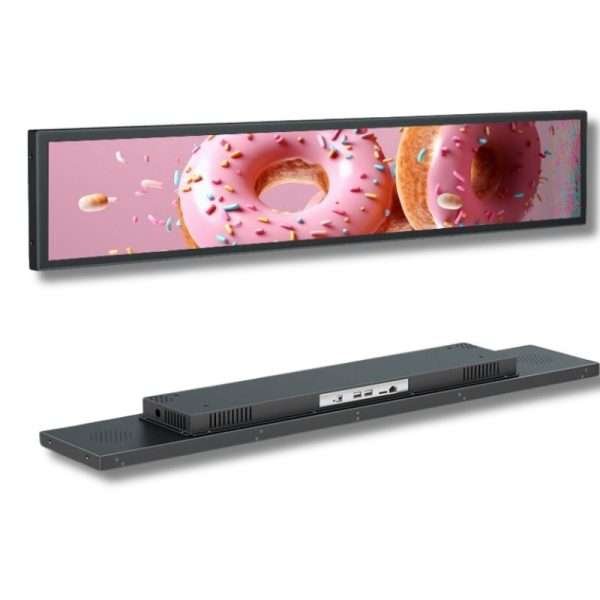

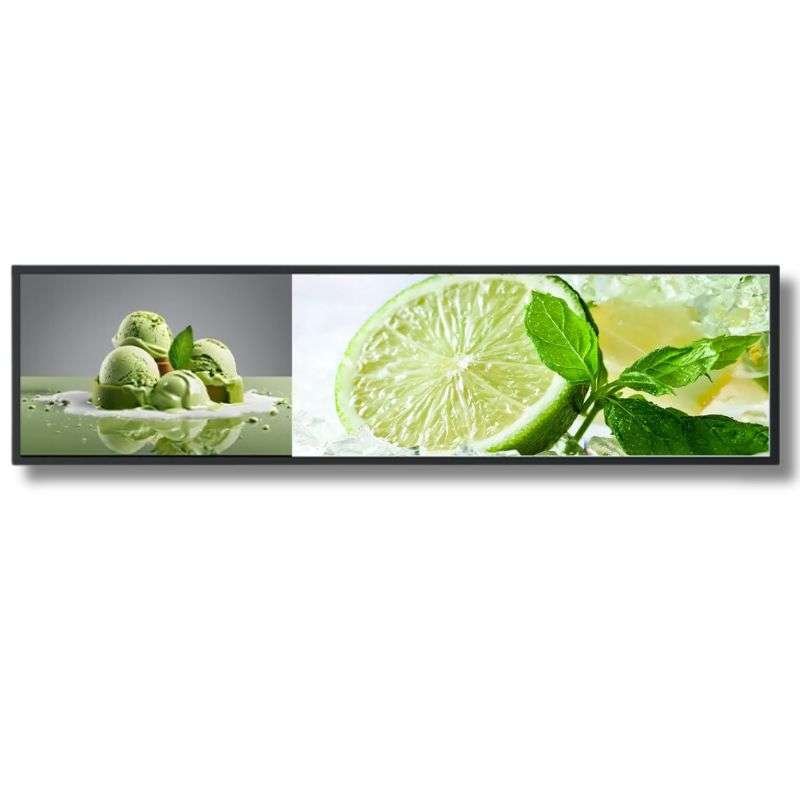

28.6-inch IPS Bar Display, Ultra Wide LCD, 1920×540, Advertising Monitor

Model: TDY286ZAX-01

Diagonal: 28.6″
Resolution: 1920×540 Pixels
Screen Type: a-Si TFT-LCD
Aspect Ratio: 32:9
Touch Screen Option: Capacitive touch panel
Download Resources: Specification | 2D Rendering



TDY286ZAX-01 | 28.6-inch IPS Bar Display | Ultra Wide LCD | 1920×540 | Advertising Monitor
28.6 inch stretched bar display with special aspect ratio 32:9, wide resolution 1920×540, with Android OS 7.1. It is designed for advertising player, digital monitor in retail store, shopping mall, hospital, supermarket.
-Supports timer switch on/off and smart split screen playback.
-Supports U disk offline playback, easy to use.
-Convenient WIFI connection: quickly update and display information in real time.
Touch screen option: Simple to operate, easily touch the screen to access all functions.


Display Screen Size 28.6 inch

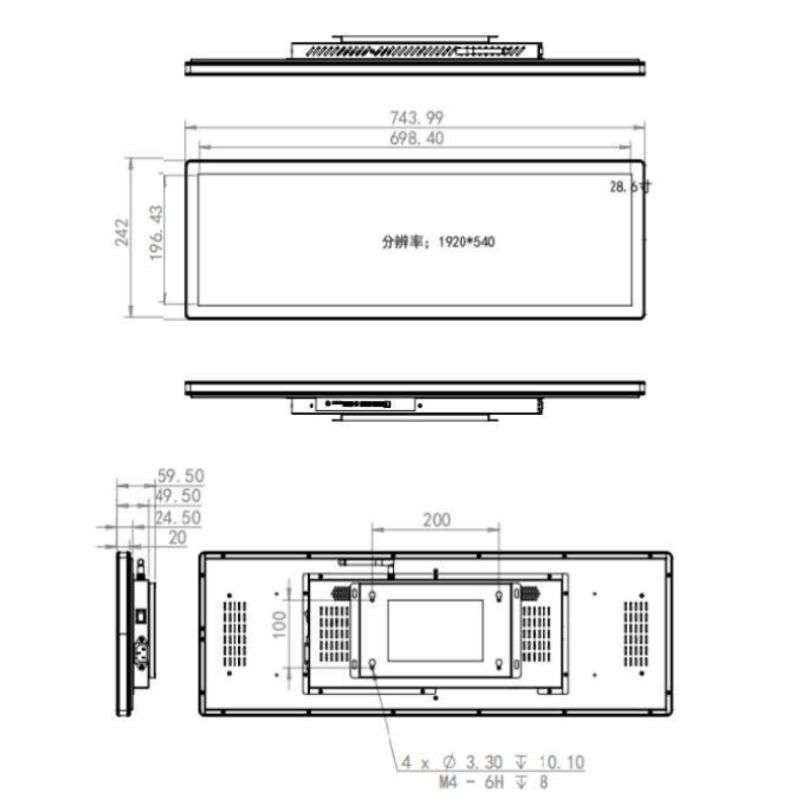

Active Area 698×196(mm)
Outline 744x242x 60(mm)
Screen Type a-Si TFT-LCD
Pixel Number 1920×540
Aspect Ratio 32:9
Luminance 400 cd/m2
Contrast Ratio 1400:1
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Mainboard CPU A40
Ram 1GB DDR4
Flash 8GB EMMC
O/S Android 7.1
Outside Interface USB*2/TF/Audio/RJ45/HDMI OUT/DC IN
Whole Machine Appearance and Structure Aluminum profile
Color White
Peripheral WIFI/Speaker*2
Power supply DC12V
Power consumption ≦6W
Operating Temperature -10℃~50℃
Storage Temperature -20℃~60℃
Installation method Wall hanging
Net weight TBD



Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
