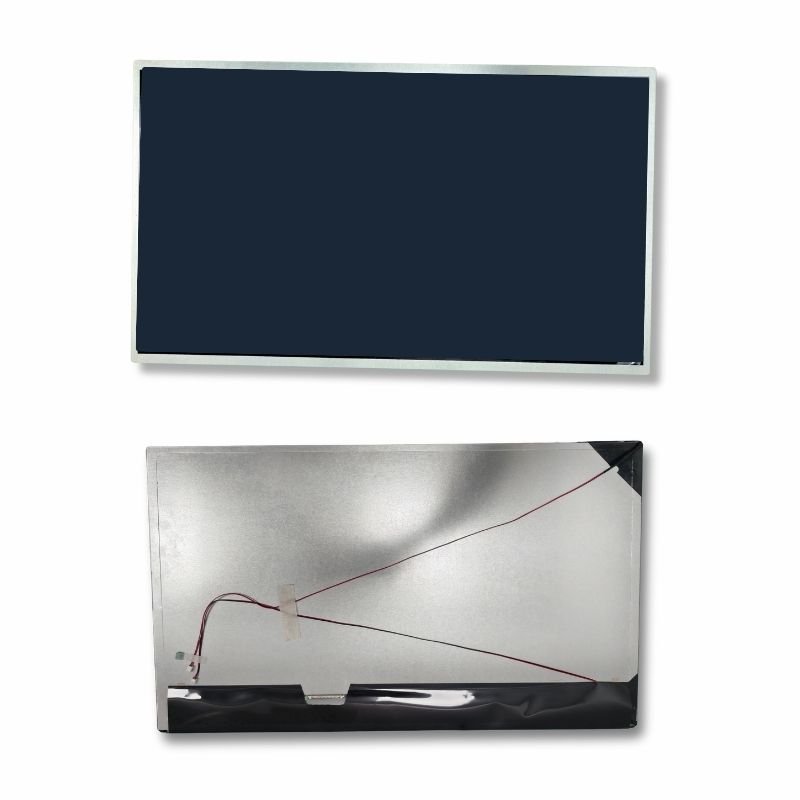

TTY238XHT-02 | 23.8-inch IPS TFT LCD | 1920×1080 Pixels |LVDS |High brightness | Wide Temperature |
This TFT display provides a full view, so people can see the quality display image from any angle.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 23.8″ |
| Resolution (pixel) | 1920×1080 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

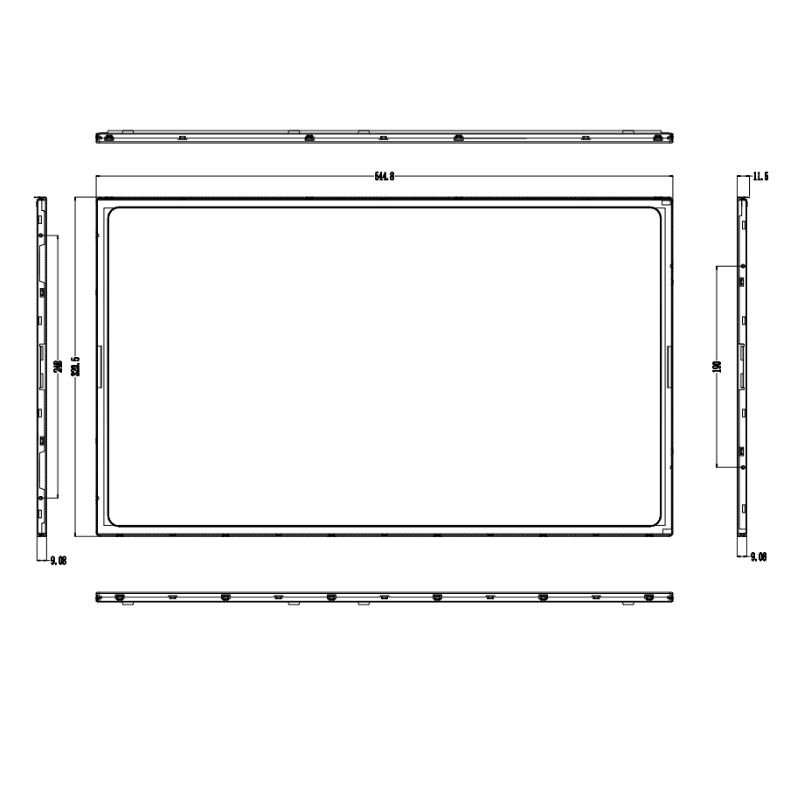

| Module Dimensions (mm) (W x H x D) | 544.8 * 320.5 * 11.5 |
| Active Area (mm) (W x H) | 527.04*296.46 |
| Luminance (cd/m2) | 1000 TYP |
| Interface | LVDS |
| Driver IC | TBD |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
