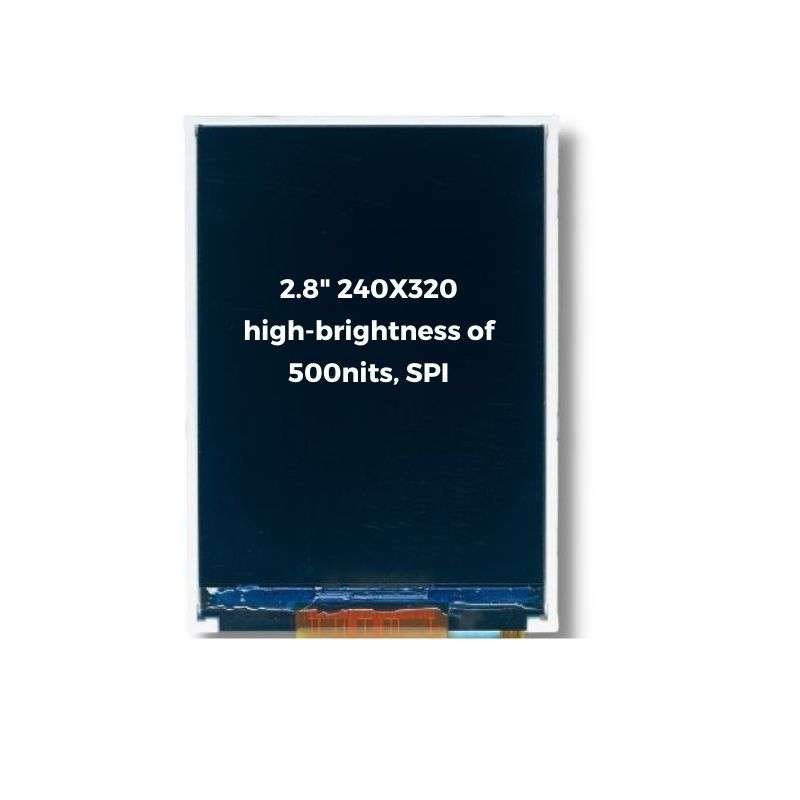

TTH028BVS-01 | 2.8 inch IPS TFT LCD | 240×320 Pixels | SPI |
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7789V2 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.
| Resolution (pixel) | 240×320 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch screen | None |

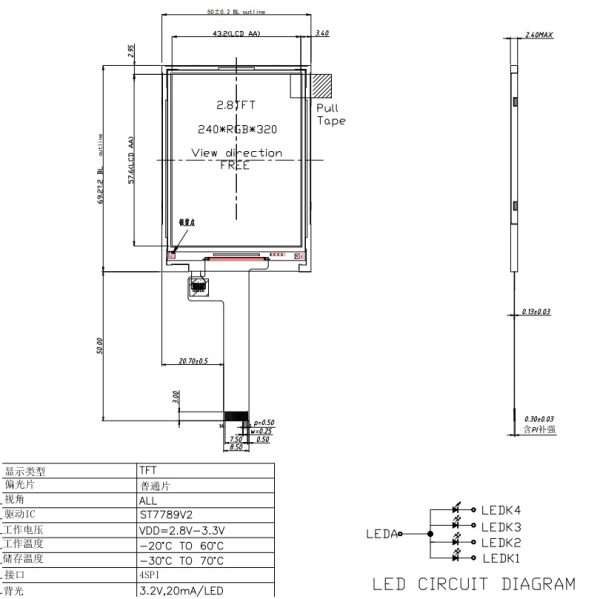

| Module Dimensions (mm) (W x H x D) | 50.00×69.20×2.30 |
| Active Area (mm) (W x H) | 43.20×57.60 |
| Luminance (cd/m2) | 500 |
| Interface | SPI |
| Driver IC | ST7789V2 |
| Operational Temperature (°C) | -20 ~ +60 |
| Storage Temperature (°C) | -30 ~ +70 |
