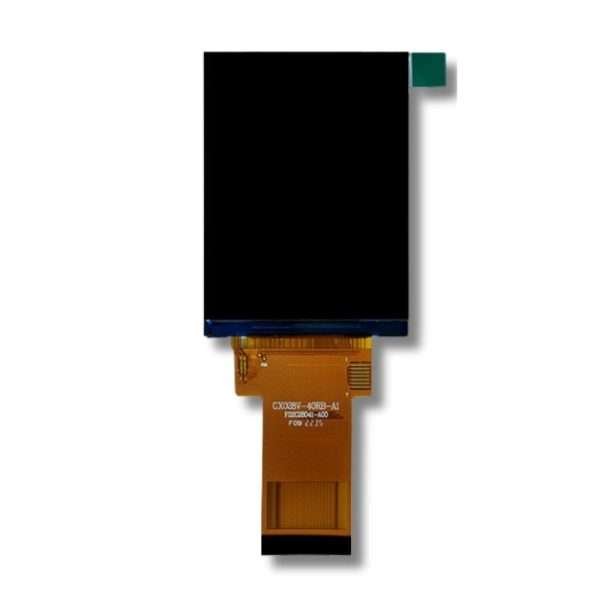

TTG028XVS-01 | 2.8 inch IPS TFT LCD | 480×640 Pixels | RGB+SPI |
The high resolution display is popular adopted in the monitors and other commercial devices.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7701S controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 2.8″ |
| Resolution (pixel) | 480×640 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

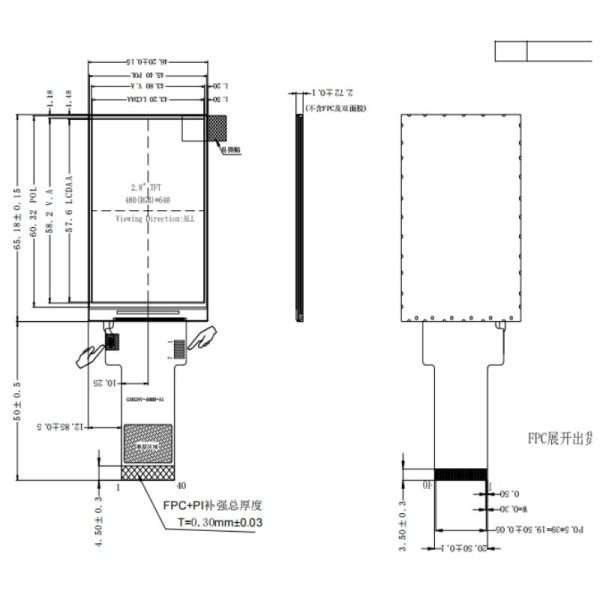

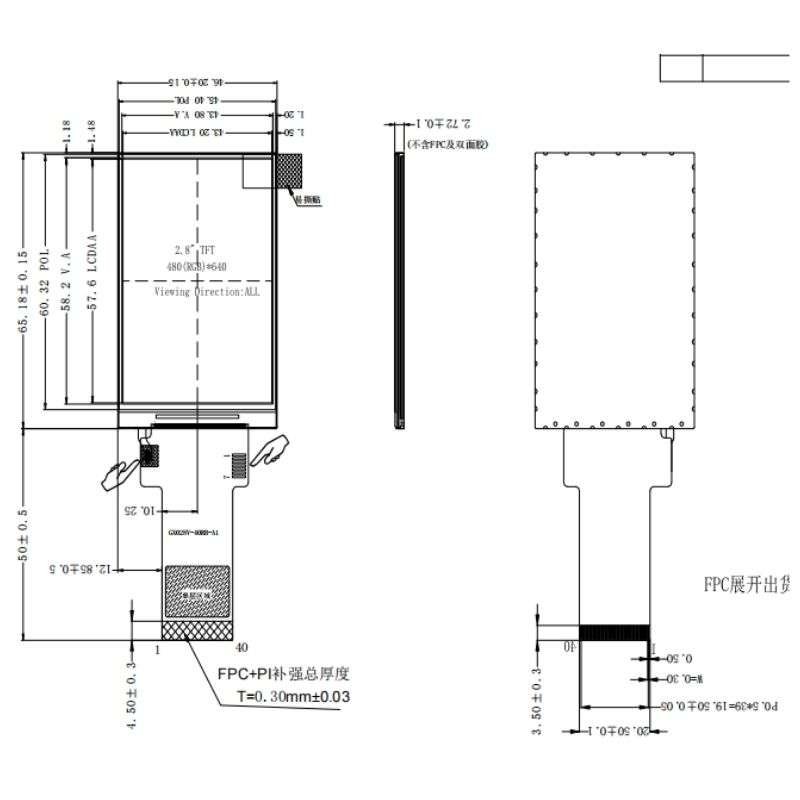

| Module Dimensions (mm) (W x H x D) | 46.2 x 65.18 x2.72 |
| Active Area (mm) (W x H) | 43.28 x 57.6 |
| Luminance (cd/m2) | 300 |
| Interface | RGB+SPI |
| Driver IC | ST7701S |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
