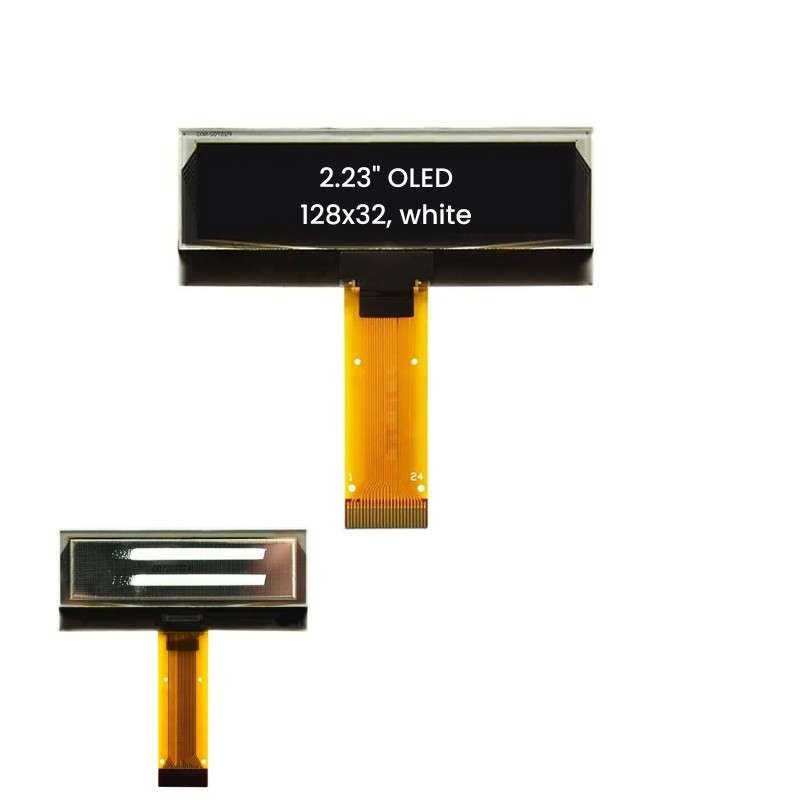

2.23 Inch OLED,128×32, White, I2C, SPI, MCU, SSD1305

Model: TOX223ASWCG02

Diagonal: 2.23″
Resolution: 128×32 Pixels
Display Type: PMOLED
Interface: I2C/SPI/MCU
Pin Number: 24
Driver IC: SSD1305
Download Resources: Specification

TOX223ASWCG02 | 2.23-inch OLED | 128×32 Dots | Monochrome White | I2C, SPI, MCU | SSD1305 |

The OLED provides bright white graphics on a black background with fast response along with high contrast visibility from any angle.
The display has a built-in SSD1305 controller and is RoHS compliant.

Diagonal (inch) 2.23
Resolution (pixel) 128×32
Display Type PMOLED
Color  White
Optimal View Full View
Voltage(V) 2.8
Module Dimensions (mm) (W x H x D) 62.0 x24.0 x 2.0
Active Area (mm) (W x H) 55.02 x 13.1
Pixel pitch(mm) 0.43 x 0.41
Pixel size(mm) 0.41 x 0.39
Luminance (cd/m2) 140 Typ.
Interface I2C/SPI/MCU
Driver IC SSD1305
Operational Temperature (°C) -40 ~ +70
Storage Temperature (°C) -40 ~ +85



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
