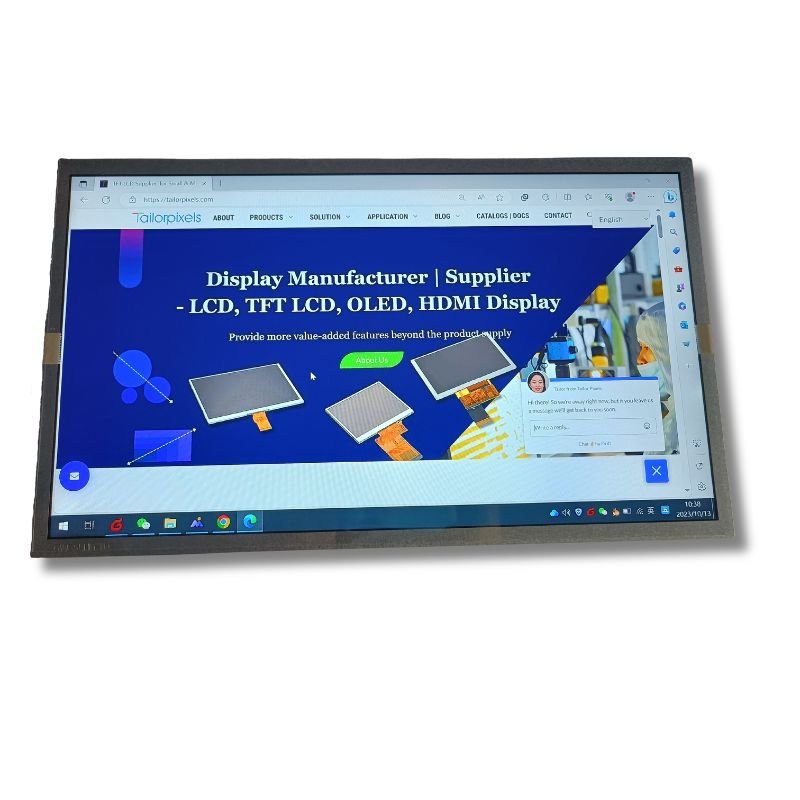

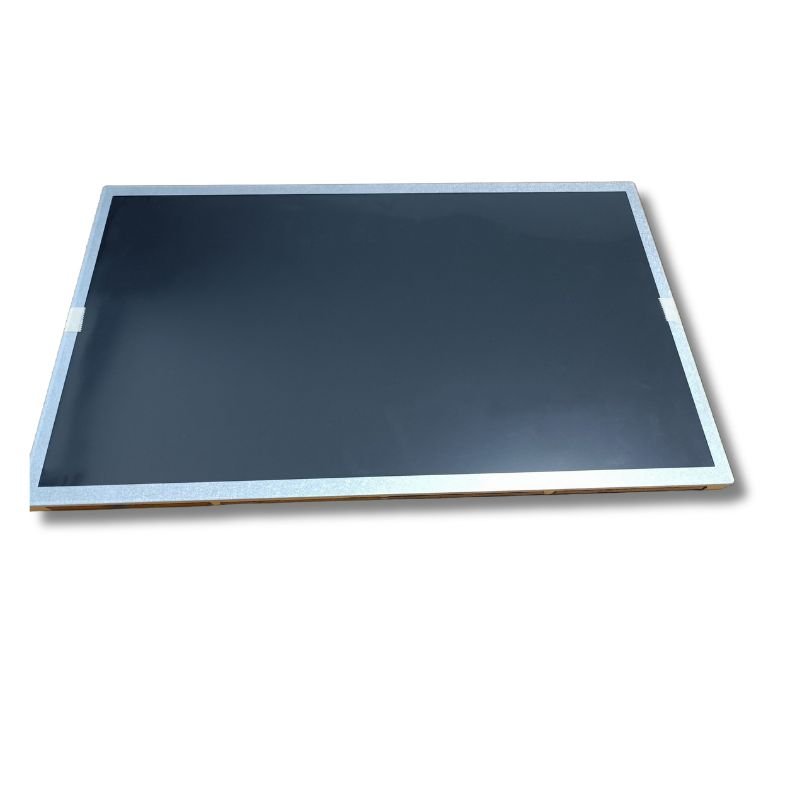

TTX185BHT-01 | 18.5-inch IPS TFT LCD | 1920×1080 Pixels | LVDS |
This TFT display provides a full view, people could see the quality display image from any angle.

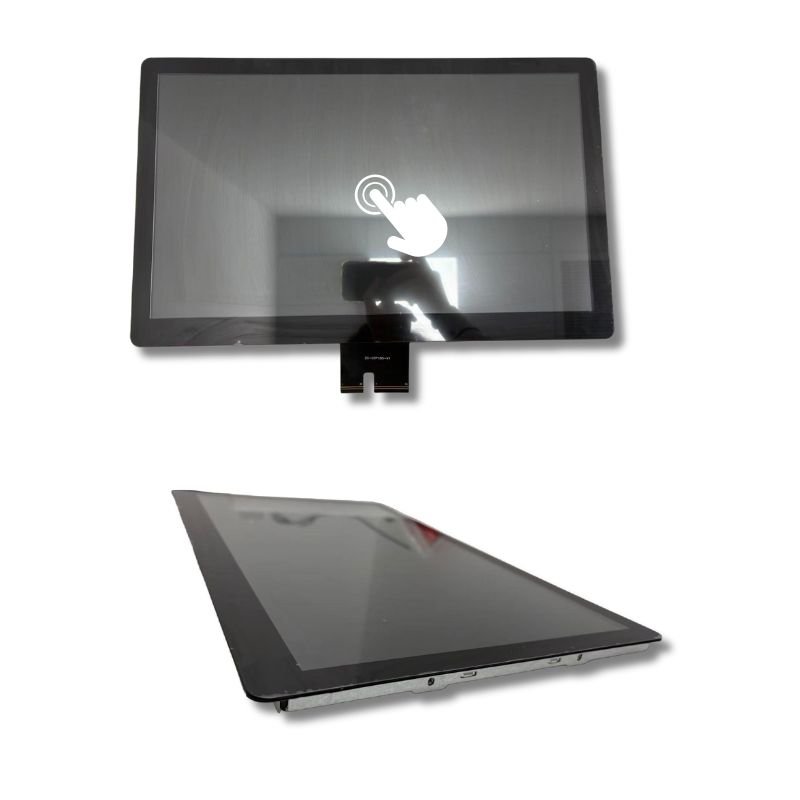

Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 18.5″ |
| Resolution (pixel) | 1920×1080 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

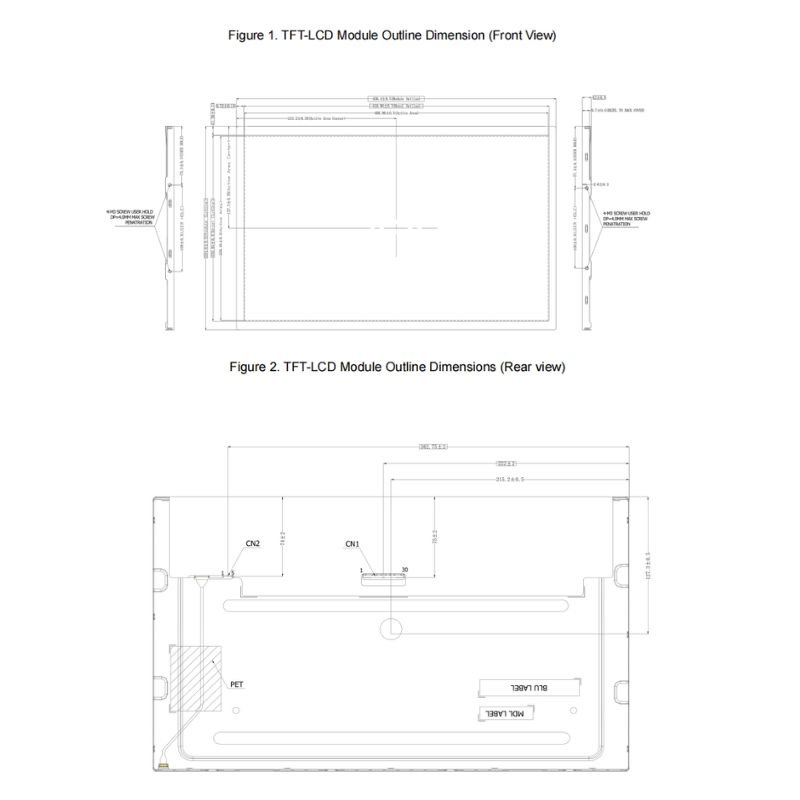

| Module Dimensions (mm) (W x H x D) | 430.4*254.6*9.3 |
| Active Area (mm) (W x H) | 409*230 |
| Luminance (cd/m2) | 400 (high-brightness option: 1200/ 2000/ 3000) |
| Interface | LVDS |
| Driver IC | TBD |
| Operational Temperature (°C) | -0 ~ +50 (wide temperature options for another model) |
| Storage Temperature (°C) | -20 ~ +60 |
