12.3 inch IPS TFT, 1920×720, LVDS, Stretched Bar LCD

Model: TTX123BHT-01
Diagonal: 12.3″
Resolution: 1920×720 Pixels
Display Type: IPS
Touch Option: Capacitive Touch
Interface: LVDS
Driver IC: TBD
Download Resources: Specification | 2D Rendering



TTX123BHT-01 | 12.3″ IPS TFT LCD | 1920×720 Pixels | LVDS |
The stretched bar LCD allows more information on the same screen.
The bar LCD module is popularly adopted in outdoor commercial devices and the auto industry.

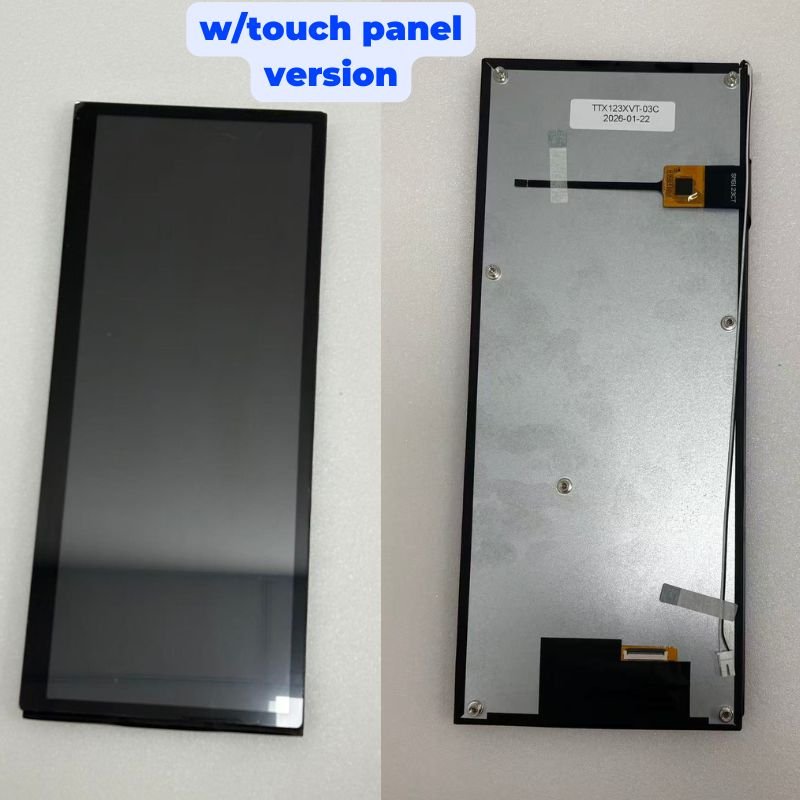

Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.


Diagonal (inch) 12.3″
Resolution (pixel) 1920×720
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Optional
Module Dimensions (mm) (W x H x D) 301.17*123.45*2.75
Active Area (mm) (W x H) 292.03*109.51
Luminance (cd/m2) 400 (high-brightness 800)
Interface LVDS
Driver IC TBD
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
