TTS116BHT-04C | 11.6-inch TOUCH DISPLAY | HDMI and TYPE-C Transfer Option | 1920×1080 Pixels | EDP |

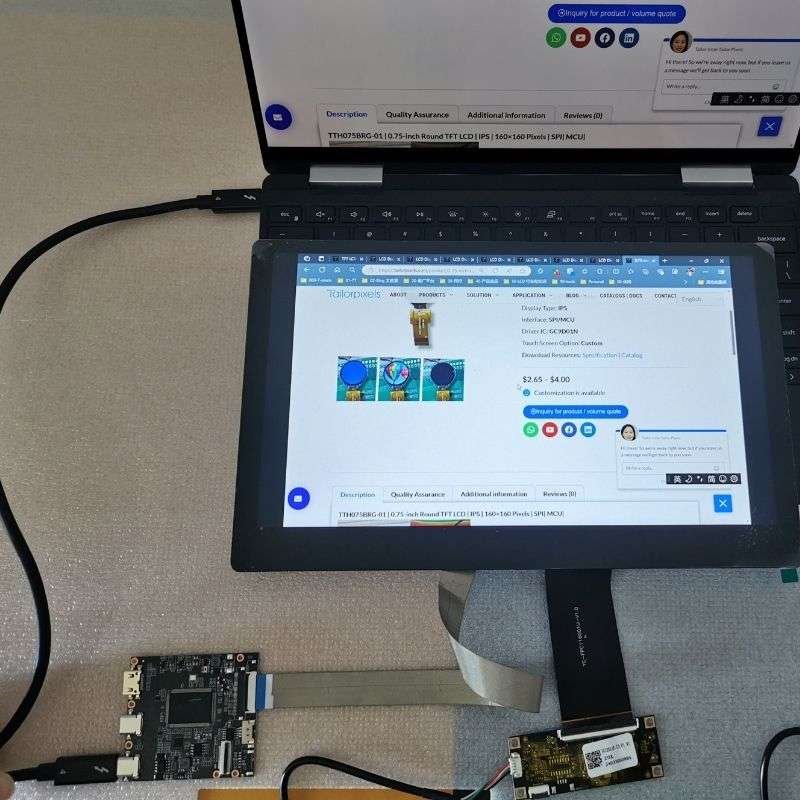

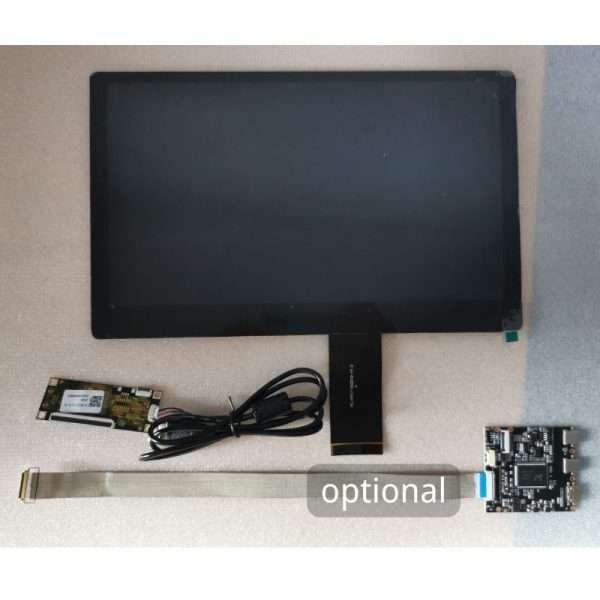

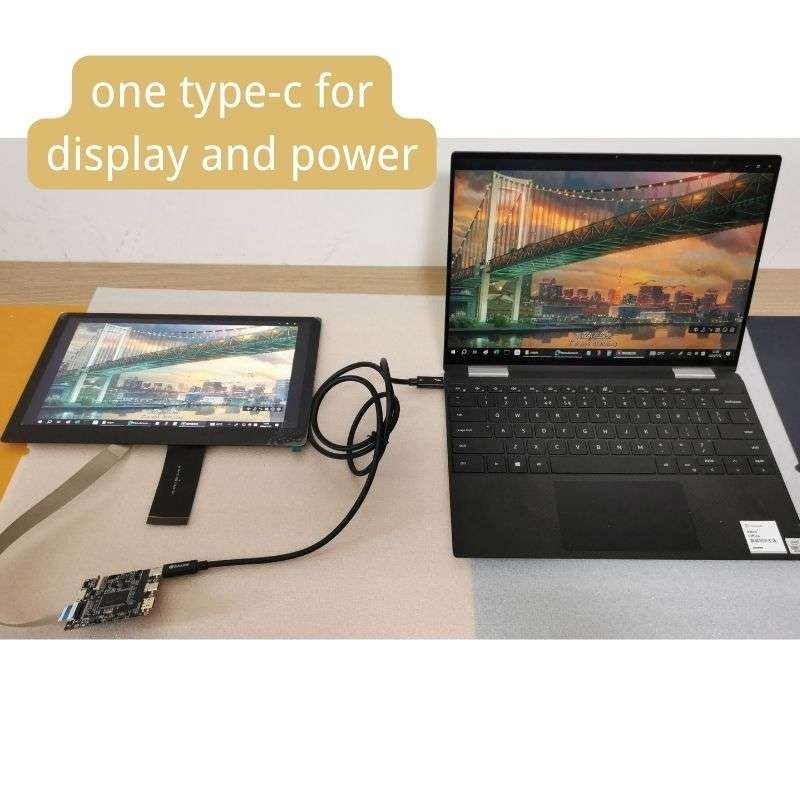

The capacitive touch panel provides USB interface, the display can connect to the laptop by one USB-C cable via the controller board (TBJ116HD-02) + eDP cable.
| Diagonal (inch) | 11.6″ |
| Resolution (pixel) | 1920×1080 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Capacitive Touch, USB interface |
| Module Dimensions (mm) (W x H x D) | 267.9*164.22*2.8 |
| Active Area (mm) (W x H) | 256.32*144.18 |
| Luminance (cd/m2) | 300/LCM |
| Interface | EDP |
| Driver IC | TBD |
| Operational Temperature (°C) | 0 ~ +50 |
| Storage Temperature (°C) | -20 ~ +60 |
