10.4 inch IPS TFT, Bar LCD, MIPI, 720×1600

Model: TTG104BVH-01

Diagonal: 10.4″
Resolution: 720×1600 Pixels
Display Type: IPS
Interface: MIPI
Driver IC: HX8252A
Touch Screen Option: Custom
Download Resources: Specification | 2D Rendering

TTG104BVH-01 | 10.4 inch IPS TFT | Bar LCD | MIPI | 720×1600
The vertical display has unique size ratio, which is designed to accommodate the terminals requiring a long visual area, such as commercial devices and auto industry equipment.
This TFT display provide a full view, people could see the quality display image from any angle.

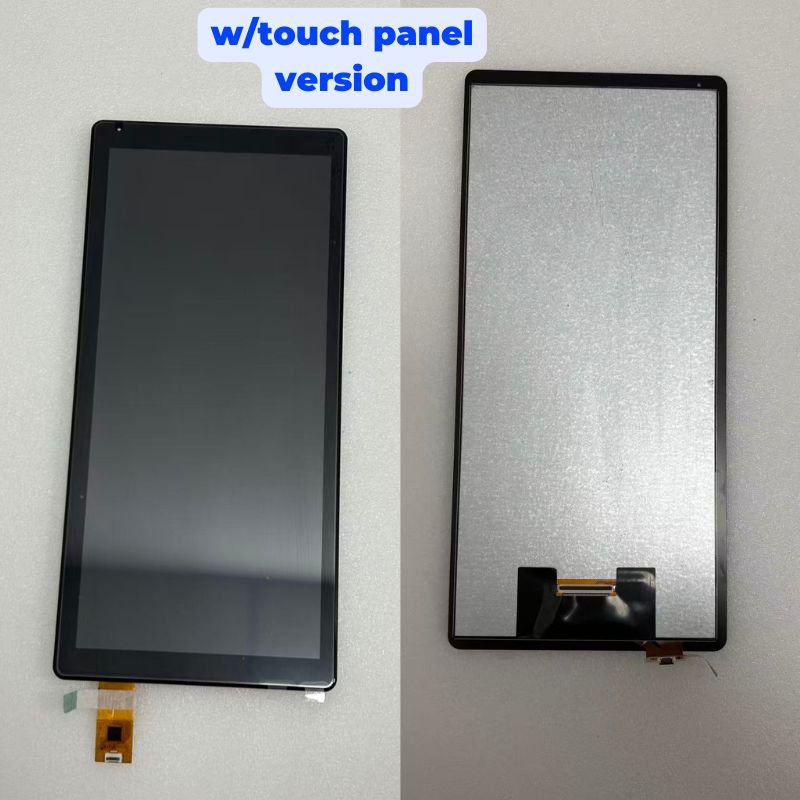

Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.


Diagonal (inch) 10.4″
Resolution (pixel) 720×1600
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Custom
Module Dimensions (mm) (W x H x D) 115.3*251*4.6
Active Area (mm) (W x H) 180*240
Luminance (cd/m2) 550 typ
Interface MIPI
Driver IC HX8252A
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
