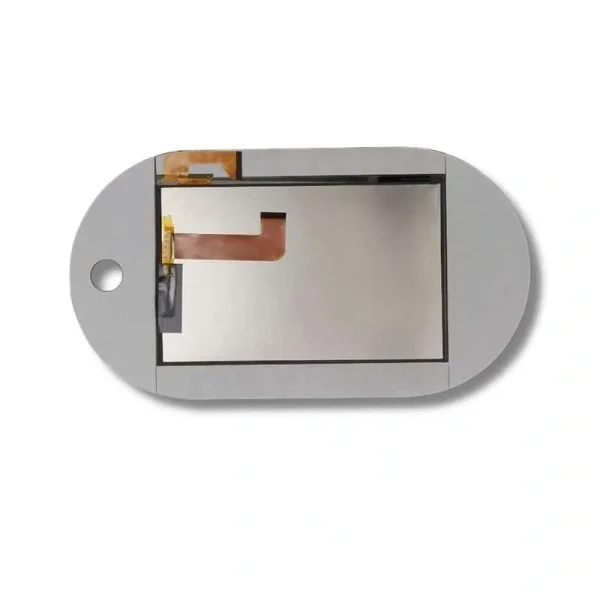

10.1 inch IPS TFT, MIPI, 800×1280

Model: TTX101BVE-01

Diagonal: 10.1″
Resolution: 800×1280 Pixels
Display Type: IPS
Interface: MIPI
Driver IC: TBD
Download Resources: Specification | 2D Rendering

$13.08$26.15



TTX101BVE-01 | 10.1″ IPS TFT LCD | 800×1280 Pixels | MIPI |
This TFT display provides a full view, people could see the quality display image from any angle.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 10.1
Resolution (pixel) 800×1280
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Optional
Module Dimensions (mm) (W x H x D) 228.6x143x2.68
Active Area (mm) (W x H) 135.36×216.576
Luminance (cd/m2) 300
Interface MIPI
Driver IC TBD
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
