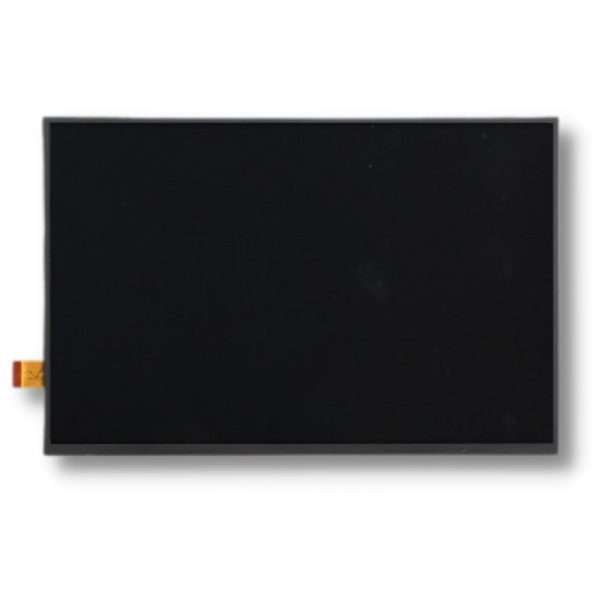

10.1 inch IPS TFT, LVDS, 1280×800, Full View，TTX101BHX-01（4）
10.1 inch IPS TFT, LVDS, 1280×800, Full View，TTX101BHX-01（3）
10.1 inch IPS TFT, LVDS, 1280×800, Full View，TTX101BHX-01（2）
10.1 inch IPS TFT, LVDS, 1280×800, Full View，TTX101BHX-01（4）
10.1 inch IPS TFT, LVDS, 1280×800, Full View，TTX101BHX-01（5）

10.1 inch IPS TFT, LVDS, 1280×800, Full View

Model: TTX101BHX-01
Diagonal: 10.1″
Resolution: 1280×800 Pixels
Display Type: IPS
Touch Screen: None
Interface: LVDS
Driver IC: TBD
Download Resources: Specification | 2D Rendering

  • Customization is available
Inquiry for product / volume quote



TTX101BHX-01 | 10.1″ IPS TFT LCD | 1280×800 Pixels | LVDS |
This TFT display provide a full view, people could see the quality display image from any angle.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 10.1
Resolution (pixel) 1280×800
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen None
Module Dimensions (mm) (W x H x D) 228.24×148.99×2.85
Active Area (mm) (W x H) 216.96×135.6
Luminance (cd/m2) 350
Interface LVDS
Driver IC TBD
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
