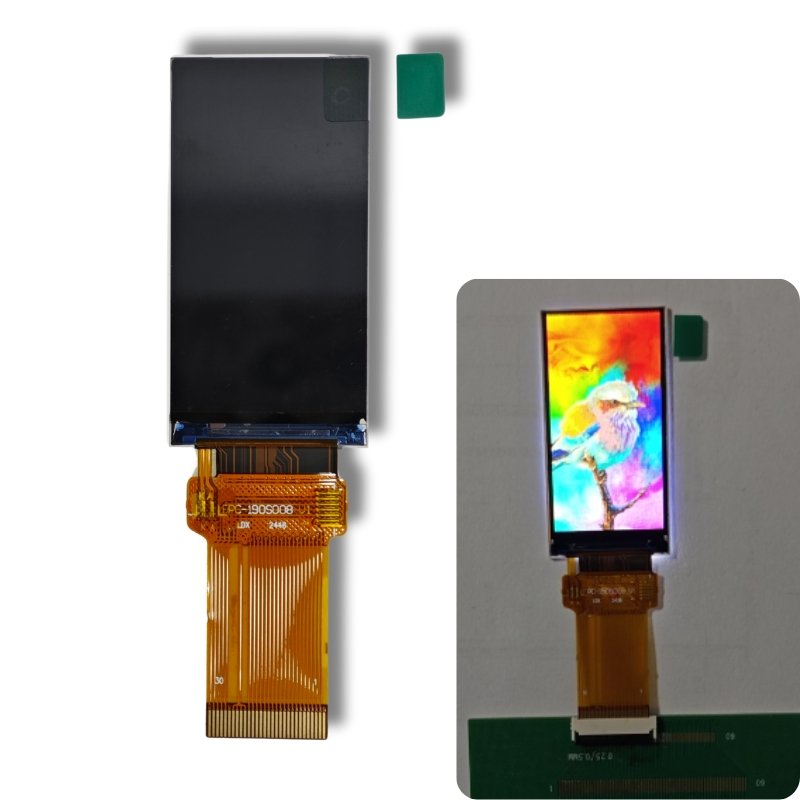

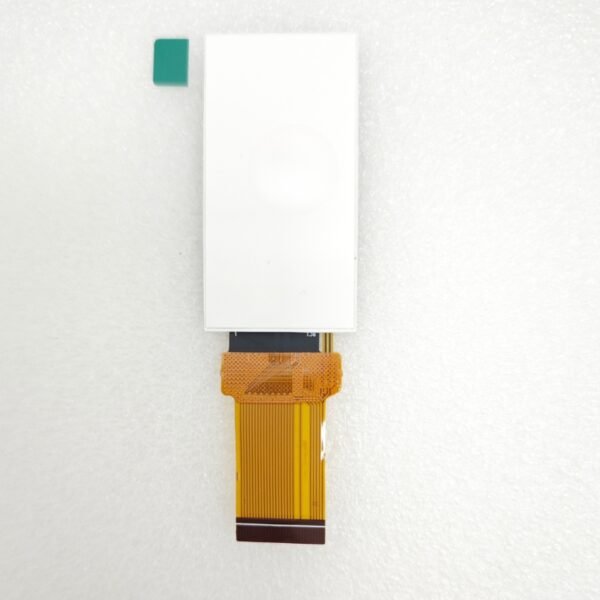

TTH019BVS-01| 1.9 inch Bar TFT LCD | 170×320 Pixels | MCU/SPI |
The bar display has unique size ratio, which is designed to accomodate the terminals requiring a long visual area , such as smart pens, electric toothbrushes.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7789V2 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 1.9″ |
| Resolution (pixel) | 170×320 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |

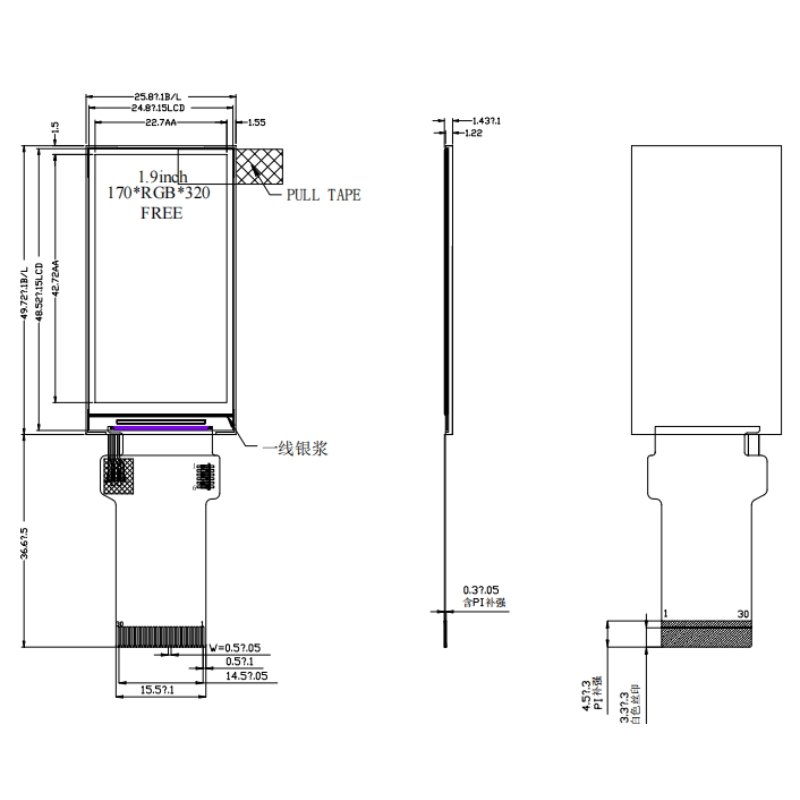

| Module Dimensions (mm) (W x H x D) | 25.80×49.72 ×1.43 |
| Active Area (mm) (W x H) | 22.70×42.72 |
| Luminance (cd/m2) | 350 |
| Interface | MCU/SPI |
| Driver IC | ST7789V2 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
