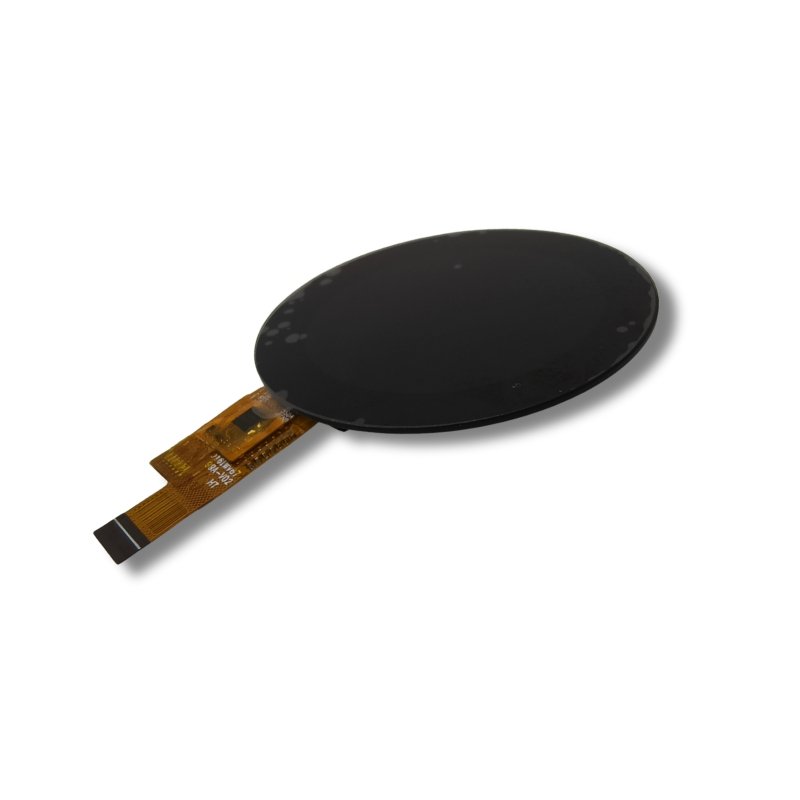

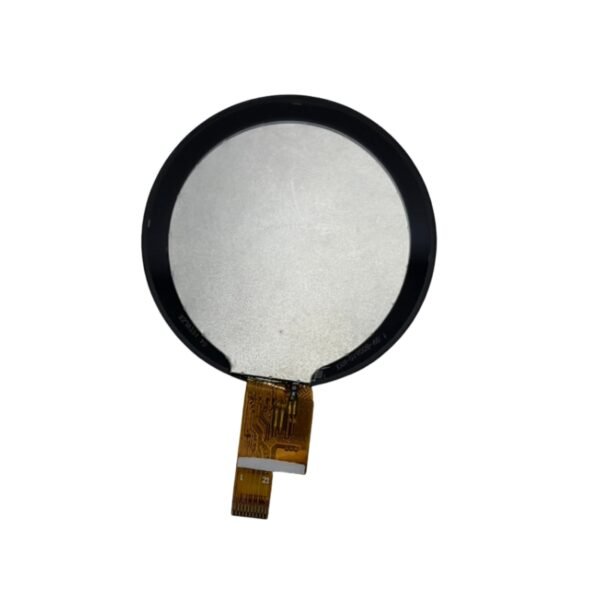

TTH160VRS-04C | 1.6 inch IPS TFT LCD w/ Capacitive Touch Screen | Round | 440×440 Pixels | MIPI |
The small round display is designed especially for commercial and wearable terminals.

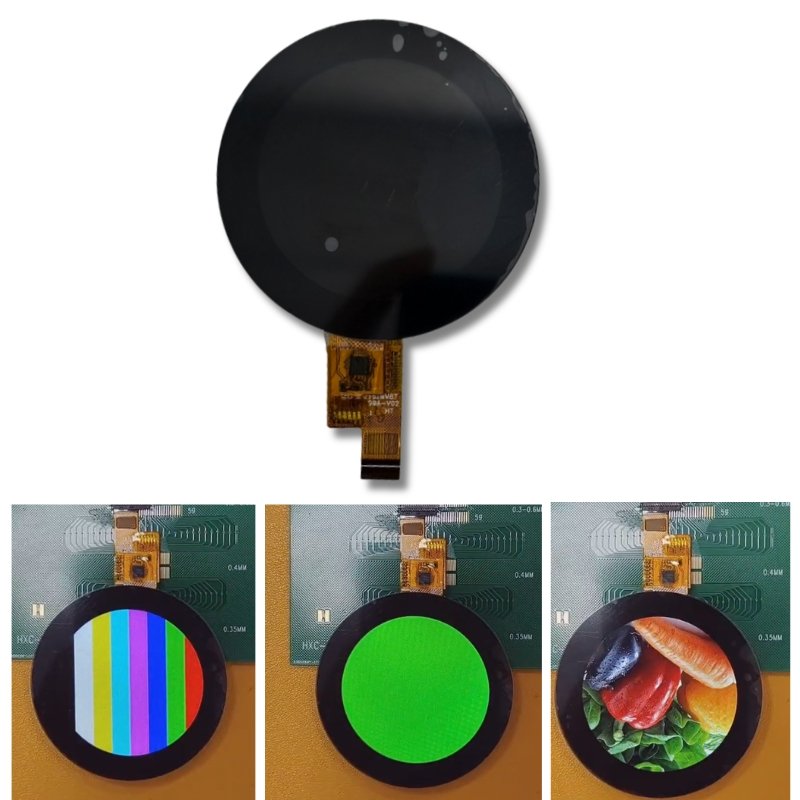

This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7797 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 1.6″ |
| Resolution (pixel) | 400×400 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Capacitive |

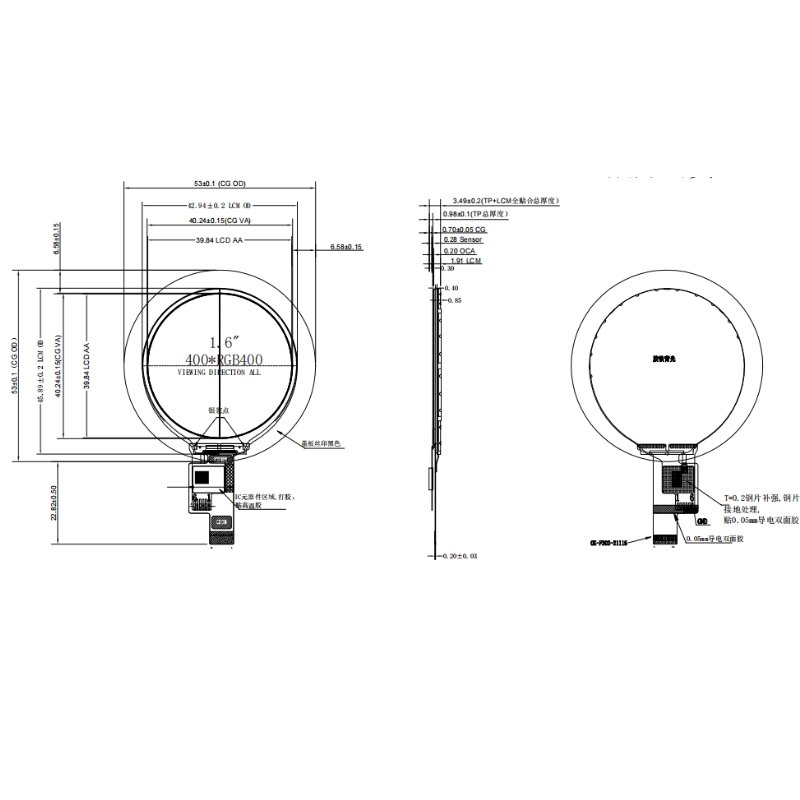

| Module Dimensions (mm) (W x H x D) | 42.94 ×45.87×1.69 |
| Active Area (mm) (W x H) | 39.84 x39.84 |
| Luminance (cd/m2) | 350 |
| Interface | MIPI |
| Driver IC | ST7797 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
